企業屋頂?shù)陌惭b和計量 Installation and Measurement of Enterprise Roofs

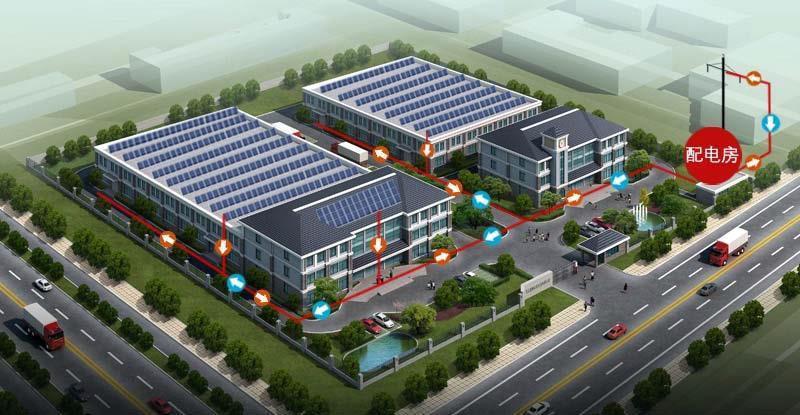

基本安裝思路：光伏板安裝在屋頂，逆變器安裝在光伏板的后邊智能配電箱安裝在用戶低壓側母線上；光伏電優先供給用戶使用，剩余部分返回電網。當光伏電不足時由電網補充。

Basic installation idea: The photovoltaic panel is installed on the roof, and the inverter is installed on the intelligent distribution box behind the photovoltaic panel, which is installed on the low-voltage side bus of the user; Photovoltaic power is given priority to users, and the remaining portion is returned to the power grid. When the photovoltaic power is insufficient, it will be supplemented by the power grid.

水泥屋頂?shù)陌惭b Installation of cement roof

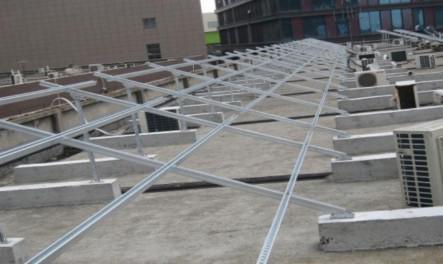

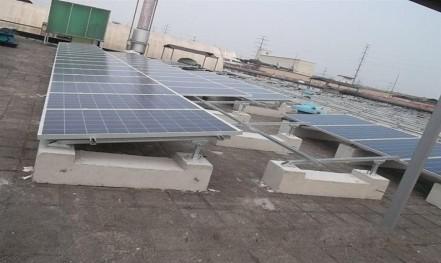

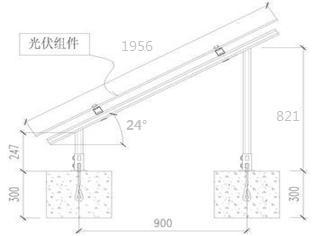

水泥屋頂采用固定配重式安裝方式安裝，該安裝方式采用水泥墩作為基礎配重，利用特殊定制的支架套件將三角形支架與水泥墩組成一個穩固的支撐結構基礎陣列；陣列前后之間間隔1.5米，避免組件前后遮擋，預留出維護通道。
結構特點：
1、不破壞原有防水層，無需防水處理；
2、適用于任意規格晶硅組件及部分薄膜組件；
3、底框上安裝可調配重基礎，增加系統抗風性，項目設計系統抗風性等級12;
4、增加系統發電量，提高系統自潔能力，便于后期運維。

The cement roof is installed using a fixed counterweight installation method, which uses cement piers as the foundation counterweight. A special customized support kit is used to form a stable support structure foundation array with triangular brackets and cement piers; The interval between the front and back of the array is 1.5 meters, to avoid blocking the front and back of the components, and to reserve maintenance channels.

Structural features:

1. No damage to the original waterproof layer, no need for waterproof treatment;

2. Suitable for any specification of crystalline silicon components and some thin film components;

3. Install adjustable counterweight foundation on the bottom frame to increase the system's wind resistance. The project design system has a wind resistance level of 12;

4. Increase system power generation, improve system self-cleaning ability, and facilitate later operation and maintenance.

彩鋼瓦屋頂?shù)陌惭b Installation of colored steel tile roof

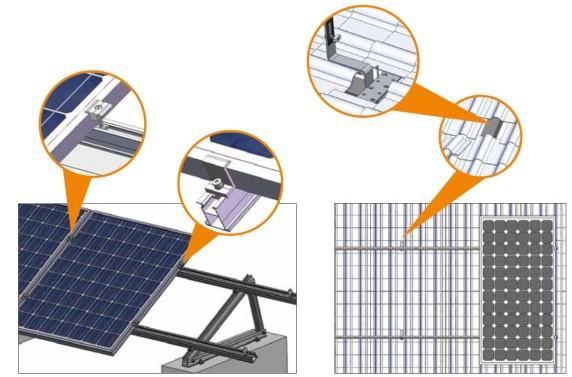

彩鋼瓦斜面屋頂安裝方式采用固定式安裝方式，安裝角度采用當?shù)刈罴压庹杖肷浣?5°，方位角0°（正南朝向）。利用特殊定制的彩鋼瓦專用夾具，固定在彩鋼瓦上，用于支撐基礎。
結構特點：
1、不破壞彩鋼瓦屋面，無需作防水處理；
2、載荷較低，增加屋面安全性，抗風性較低，項目抗風等級12級；
3、增加系統發電量，提高系統自潔能力，便于后期運維。

The installation method of the colored steel tile sloping roof adopts a fixed installation method, and the installation angle adopts the best local light incidence angle of 25 °, and the azimuth angle is 0 ° (facing due south). Using a specially customized fixture for color steel tiles, it is fixed on the color steel tiles to support the foundation.

Structural features:

1. Does not damage the colored steel tile roof and does not require waterproofing treatment;

2. Low load, increased roof safety, low wind resistance, project wind resistance level 12;

3. Increase system power generation, improve system self-cleaning ability, and facilitate later operation and maintenance.

太陽能支架用料 Materials for solar support
采用鋁合金支架，材質輕便，結構牢固。采用陽極氧化處理、抗UV老化等技術。風荷載80m/s、雪荷載1.6KN/ 、能承受大氣侵蝕和其它外部效應的侵蝕，可確保戶外使用30年不生銹。無焊接、無鉆孔100%可重復利用。避免角鋼槽鐵預制焊接帶來誤差錯誤，影響工程質量。產品標準化，有效提高安裝效率，節約工期。

Adopting aluminum alloy bracket, the material is lightweight and the structure is firm. Adopting technologies such as anodizing treatment and UV aging resistance. Wind load of 80m/s, snow load of 1.6KN/s, and ability to withstand atmospheric erosion and other external effects can ensure outdoor use for 30 years without rusting. No welding, no drilling, 100% reusable. To avoid errors caused by prefabricated welding of angle steel channel iron, which may affect the quality of the project. Product standardization effectively improves installation efficiency and saves construction time.

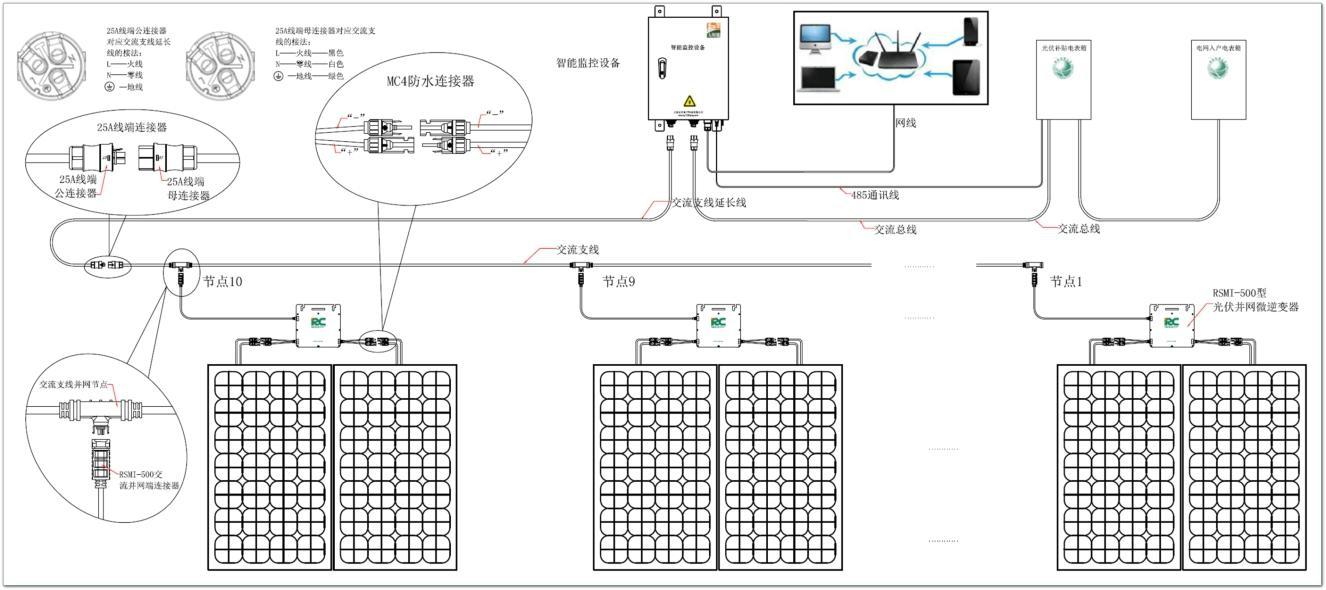

線路連接方式 Line connection method

BIPV的功能介紹 Introduction to the functions of BIPV

BIPV是在原有平屋面或者地面搭建鋼結構，在鋼結構上直接鋪設光伏組件作為屋面;其目的是收集太陽能，這是一種可再生和清潔的電力。由于面板是建筑物的組成部分，因此電力是在現場產生的，因此不需要額外的土地面積這使得 BIPV可以說是一種具有投資回報的建筑材料。
除此之外，與非集成等效物相反，BIPV 面板還在物理和功能方面取代了傳統的建筑圍護結構材料和結構，例如屋頂和外墻。因此，BIPV 面板始終是多功能的一些例子:
天氣防護: BIPV 組件用作屋頂或外墻，形成堅固的屏障，并起到防雨、防陽光、防雪和防風等天氣防護的作用。
遮陽: 根據 BIPV 組件的色調、透明度等級以及單體電池之間的距離，組件的半透明度會有所不同。完全或部分不透光的模塊可用作遮陽系統，例如用作火車站月臺、停車場或加油站的檐篷的一部分。
日光照明:另一方面，透明透明玻璃的集成允許陽光透過。因此，有屋頂?shù)慕ㄖ锟梢栽谑覂?nèi)自然光下被照亮，這有助于減少建筑物的照明相關能源消耗。
隔熱: BIPV模塊由至少兩塊玻璃板組成(中間有一層光伏電池)。為了提高建筑物的能源效率和絕緣性能，可以在電池后部使用中空玻璃。
噪音保護: 就像傳統的玻璃幕墻一樣，BIPV 模塊構成了一個堅固的物理障礙物，可以有效地反射聲波和噪音。
根據相關測評機構預計2022-2025年光伏建筑市場空間總量2403/3161/3910/4236億元，其中BIPV市 場空間總量231/391/631/866億元。預計2025年當年光伏建筑增量與存量市場將產生總計4235億以上市場空間，BIPV 總體滲透率將快速接近20%，2025年將產生總計866億以上市場空間。分布式光伏市場尤其是BIPV市場潛力較大。

BIPV is the construction of a steel structure on an existing flat roof or ground, with photovoltaic modules directly laid on the steel structure as the roof; Its purpose is to collect solar energy, which is a renewable and clean form of electricity. As panels are an integral part of buildings, electricity is generated on-site, so no additional land area is required. This makes BIPV a building material with investment returns.

In addition, in contrast to non integrated equivalents, BIPV panels also physically and functionally replace traditional building envelope materials and structures, such as roofs and exterior walls. Therefore, BIPV panels are always some examples of versatility:

Weather protection: BIPV components are used as roofs or exterior walls to form a sturdy barrier and serve as weather protection against rain, sunlight, snow, and wind.

Sunshade: The semi transparency of BIPV components may vary depending on their color tone, transparency level, and distance between individual batteries. Modules that are completely or partially opaque can be used as shading systems, such as as as part of the canopy of train station platforms, parking lots, or gas stations.

Daylight lighting: On the other hand, the integration of transparent glass allows sunlight to pass through. Therefore, roofed buildings can be illuminated under natural indoor light, which helps reduce the energy consumption related to lighting in the building.

Insulation: The BIPV module consists of at least two glass panels (with a layer of photovoltaic cells in the middle). In order to improve the energy efficiency and insulation performance of buildings, insulating glass can be used at the back of the battery.

Noise protection: Just like traditional glass curtain walls, BIPV modules form a sturdy physical barrier that can effectively reflect sound waves and noise.

According to relevant evaluation agencies, the total space of the photovoltaic building market from 2022 to 2025 is expected to be 2403/3161/391/423.6 billion yuan, of which the total space of the BIPV market is 231/391/631/86.6 billion yuan. It is expected that the increment and stock market of photovoltaic buildings will generate a total market space of over 423.5 billion yuan in 2025, and the overall penetration rate of BIPV will quickly approach 20%. In 2025, a total market space of over 86.6 billion yuan will be generated. The distributed photovoltaic market, especially the BIPV market, has great potential.
